Conspit 300 GT
Race-Grade 3D Carbon Reinvented
Competitive Edge
The 300 GT introduces a groundbreaking combination of CONSPIT’s proprietary technologies, built upon a race-grade carbon fiber lightweight structure. It integrates cutting-edge ergonomics, optimized control layouts, and unique interactive control-display feature, creating a new vision of practical aesthetics for sim racing.
Race-Grade Carbon Fiber Structure
3D True Carbon Fiber Front Panel + High-Strength Aluminum Alloy Main Body in a precision interlocking design 1150g ultra-lightweight and rigid construction offers extremely low rotational inertia and high torsional rigidity, minimizing interference with force feedback details.
3D True Carbon fiber Front Cover
The front housing is crafted from T-300 carbon fiber prepreg, weighing just 43 grams and offering tensile strength up to 16 times that of carbon fiber composite injection molding. 12-layer prepreg lamination structure, utilizing the same Compression Molding Carbon Fiber Process proven in Le Mans-level racing.
High-strength Aluminum Alloy Main Body
The rear housing is made from high-strength aluminum alloy, injection molded as one piece and CNC machined for precision. Optimized for maximum rigidity, strength, and 222 grams lightweight performance.
110-Key Professional Controls
The 300 GT supports up to 110 independent button outputs, fulfilling the needs of the most professional in-game controls and in-car adjustments.
8 Customizable RGB Buttons with Precision Feedback
500g trigger force + shock-absorbing silicone pad + clear rebound Full-color customization, supporting lighting effects feedback control via CONSPIT Link 2.0 and SimHub.
2 ThumbClick™ Dials
CONSPIT Exclusive Design: Ergonomically optimized for thumb use with triple precision tuning—diameter, resistance, and trigger feel—for enhanced control and reduced accidental inputs.
3 Dual-mode Knobs (+/- & absolute)
These knobs feature a 12-position switch, allowing seamless mode switching between incremental (+/-) and absolute position via Conspit Link 2.0 software.
2 Encoder Dials with Remapping Function
Each individual vertical encoder dial can be switched between 12 different +/- button mapping combinations, unlocking a wide range of in-car adjustment possibilities. For more details, please refer to the following Encoder Remap section.
Encoders Remap
By switching the central knob ① to different positions, users can change the button mapping of encoders ② and ③, allowing for different in-game controls. For example: – In position 3, encoder 2 can be bound to TC1, and encoder 3 can be bound to TC2. – In position 4, encoder 2 can be bound to Bias, and encoder 3 can be bound to ABS.
Rear Shortcut Buttons
Shortcut buttons on the back for easy control adjustments (e.g., ERS, differential preload) during cornering.
2.99” Built-in LCD Display
The 300 GT features the proprietary CONSPIT 2.99-inch display, offering 7 dash pages for vital telemetry display, with more pages to come in future updates.
Display Integration with Encoders Remap
The display integrates with the “Encoders Remap” function: providing real-time visualization of encoder button mapping (e.g., TC1/TC2→Bias/ABS).
Professional Lighting Effects, 56 Fully Customizable LEDs
8 button lights, 12 RPM indicator LEDs, and 36 knob position backlight indicators, all customizable with user-defined colors and feedback effects All lights are compatible with SimHub, allowing for the most comprehensive race and vehicle telemetry indicators.

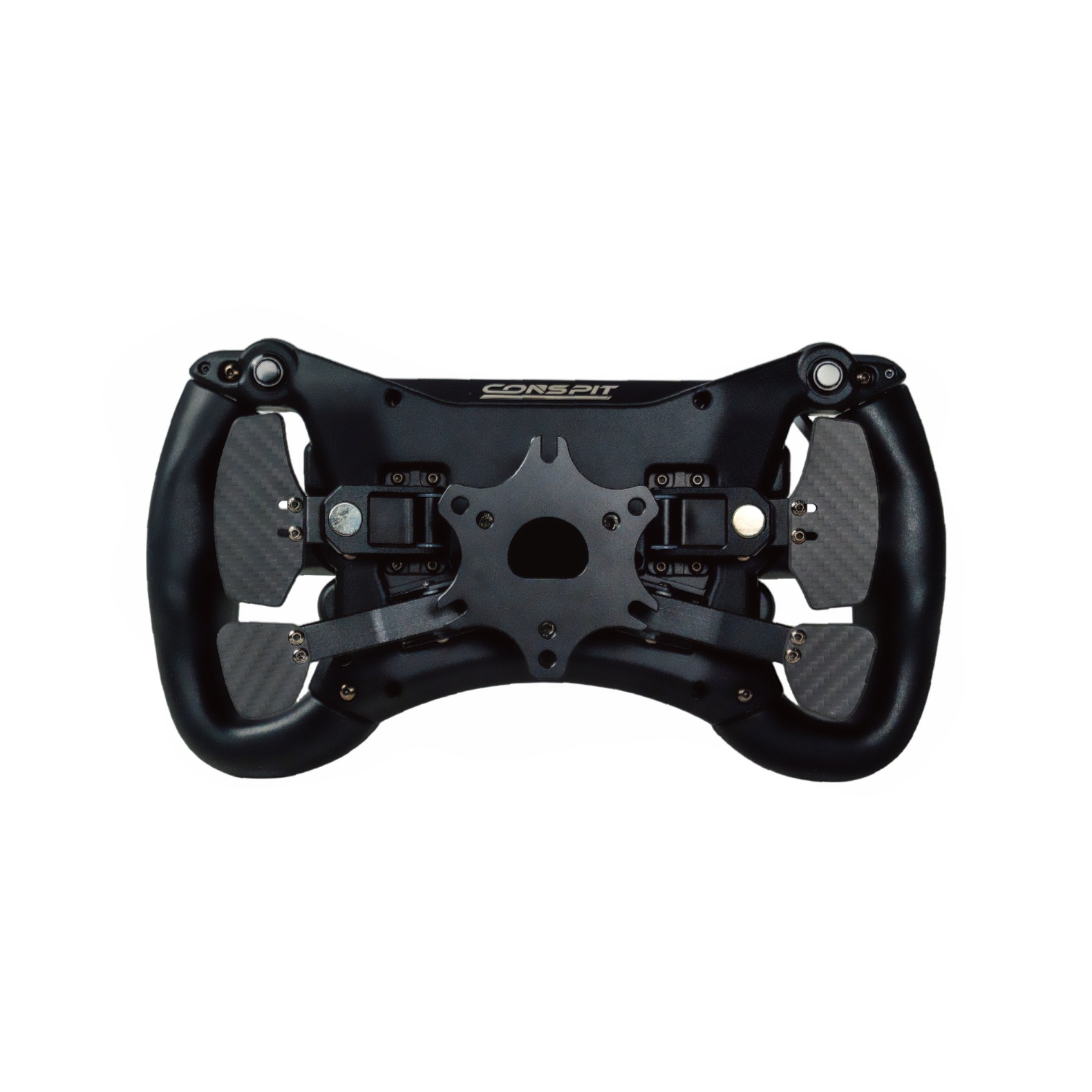

Magnetic Shift Paddles – Built to Endure
Adjustable pressure with three options: 550gf, 660gf, and 900gf, allowing for tailored driving experiences.
Dual-Clutch Paddles – Excellence as Standard
Pressure and travel verified for the optimal control experience, with customizable dual-clutch, bite point and independent axle modes in CONSPIT Link 2.0, making race starts effortlessly smooth.
EnduroGrips – Engineered for Endurance and Comfort
The 300 GT carries over the EnduroGrips design from the 290GP, using high-grade TPU material. Three times more durable than standard TPE, these grips resist wear, dirt, and flaking.
Anti-Fatigue Grip Geometry
Designed for a full grip that eliminates hand fatigue efficiently, ensuring accurate tactile feedback during long sessions. The core gripping area is optimized for both 2-finger and 3-finger lower grips, with a curved design that enhances force transfer and improves control when pushing with the palm.
Quick-Con Adapter with Independent USB Connection
– Standard 70mm PCD adapter, ensuring broad compatibility with various options. – Heavy-duty quick connector ensures stable, reliable connections. – Comes with a detachable coiled cable featuring a direct USB connection.
Specifications
