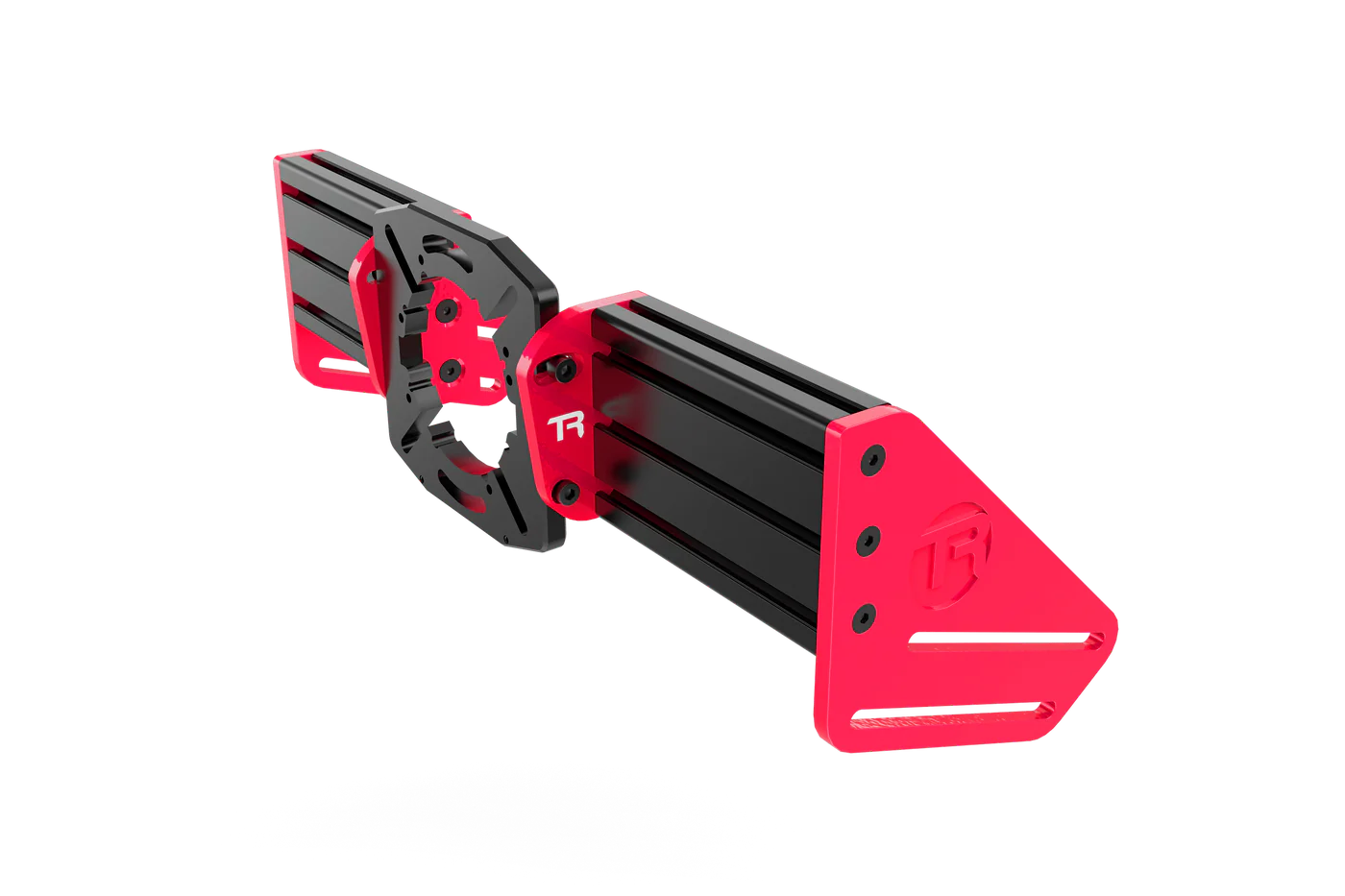

The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheelbase you mount. The base structure is made of thick-walled extruded aluminium and the plates are meticulously crafted from high-quality aluminium then anodized.
Angle Adjustment: Fully Adjustable Mount with up to 12° degree tilt angle PLUS greater angle adjustments of the outer plates
Material: Anodised Red Aluminium Plates, Extruded Aluminium Profile, and Carbon Steel

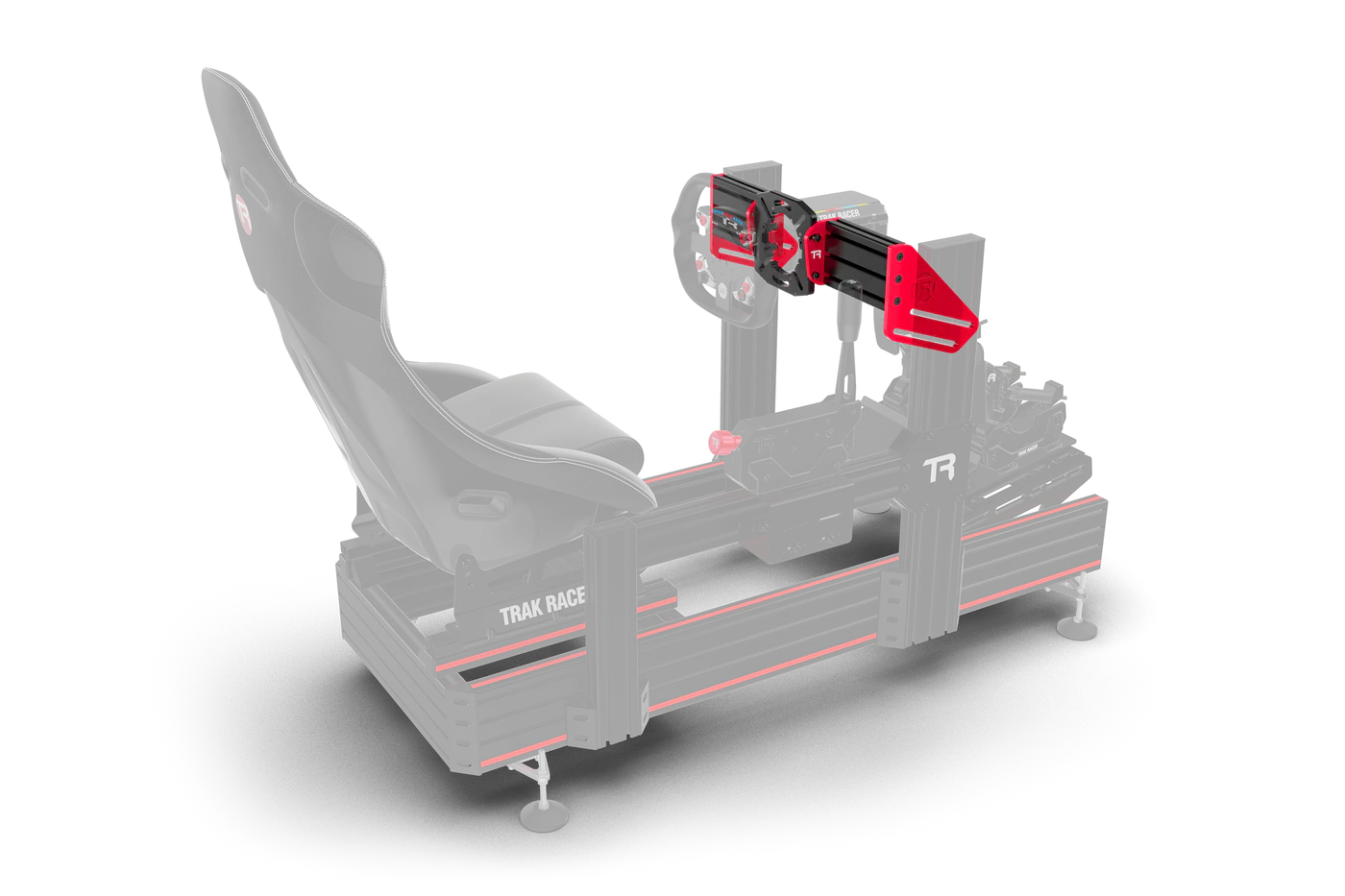

Rig Compatibility: This part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds.
Not Compatible with Trak Racer TR80-LITE due to the wheel uprights only being 660mm/26″ tall (compared to 780mm/30.7″ on the TR80, TR120, and TR160).
Full Mount Width (including 120 x 40mm profile): 580mm/22.83″
Front Direct Drive Mount Compatibility:
- Trak Racer 13Nm and 20Nm Direct Drive Bases (Coming Q3 2024)
- Simucube SC1 / SC2 Sport, Pro, Ultimate
- VRS Force Pro
- AccuForce V1/V2 (turn the top cover around to fit)
- MiGe 130ST(small and big)
- Bodnar 53 series
- SIMAGIC ALPHA / ALPHA Mini/ ULTIMATE
- Lenze MCS12 series
- Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
- IMMSOURCE ET3 and ET5
- Fanatec Podium DD (installs without front plate)
